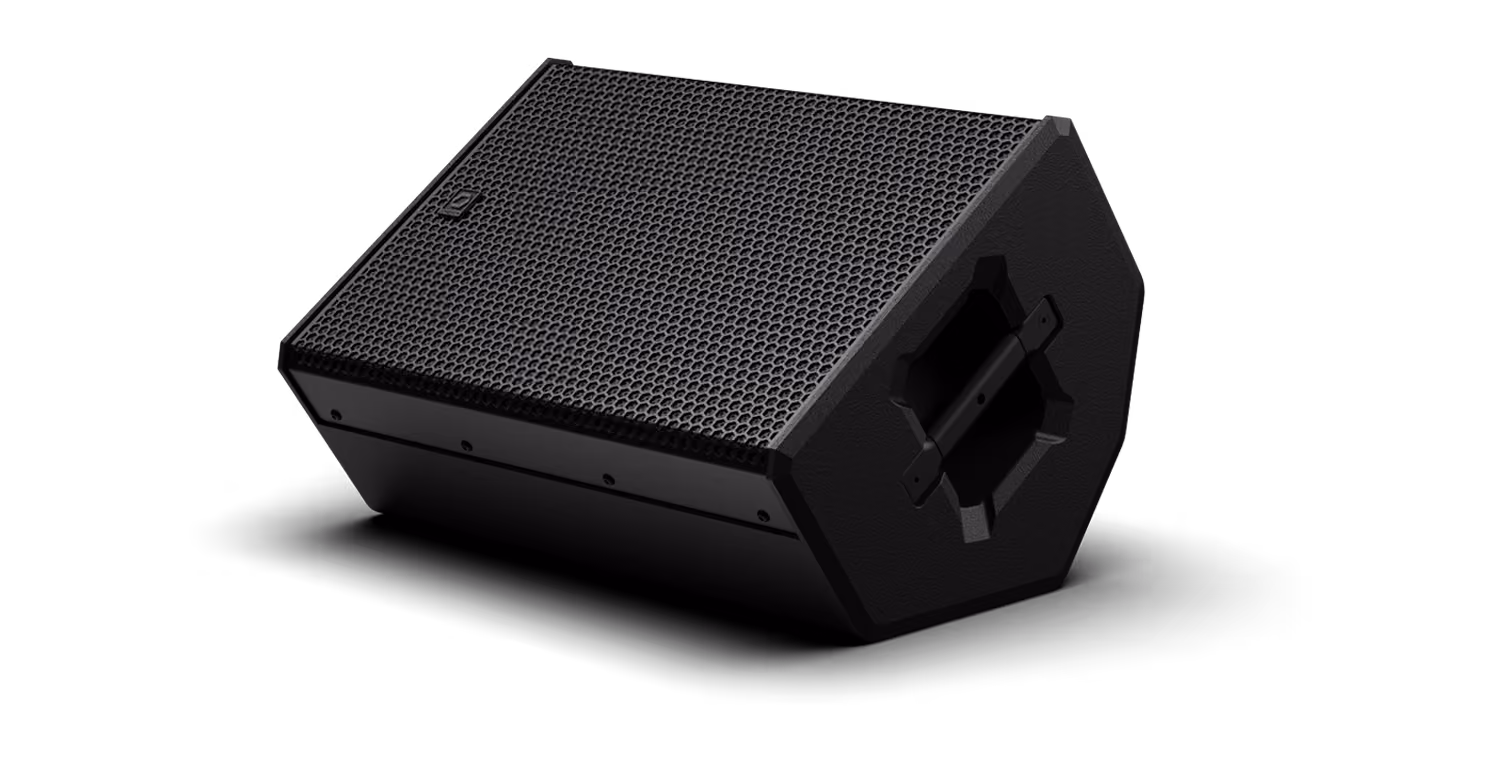

Front Right
Placeholder

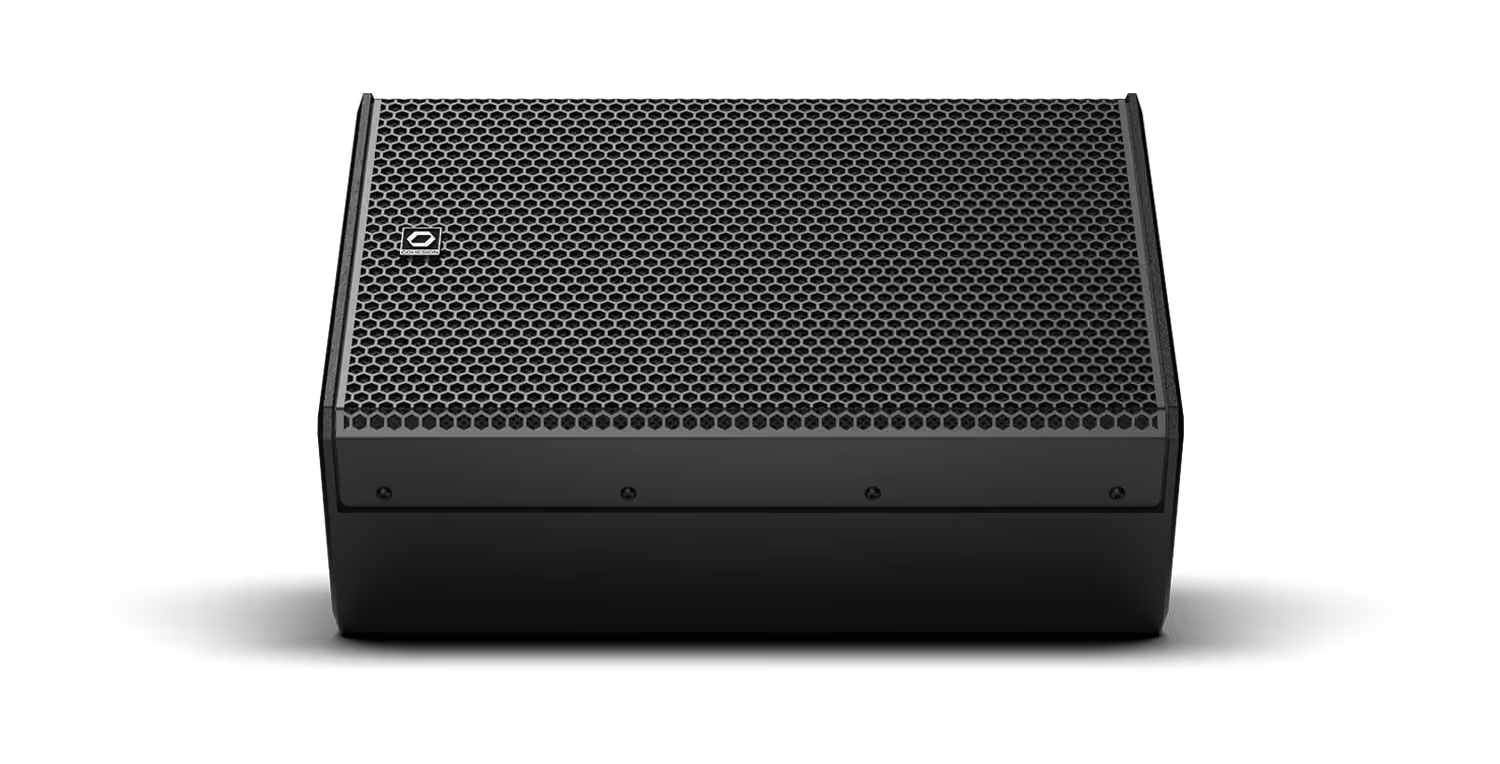

Front
Placeholder

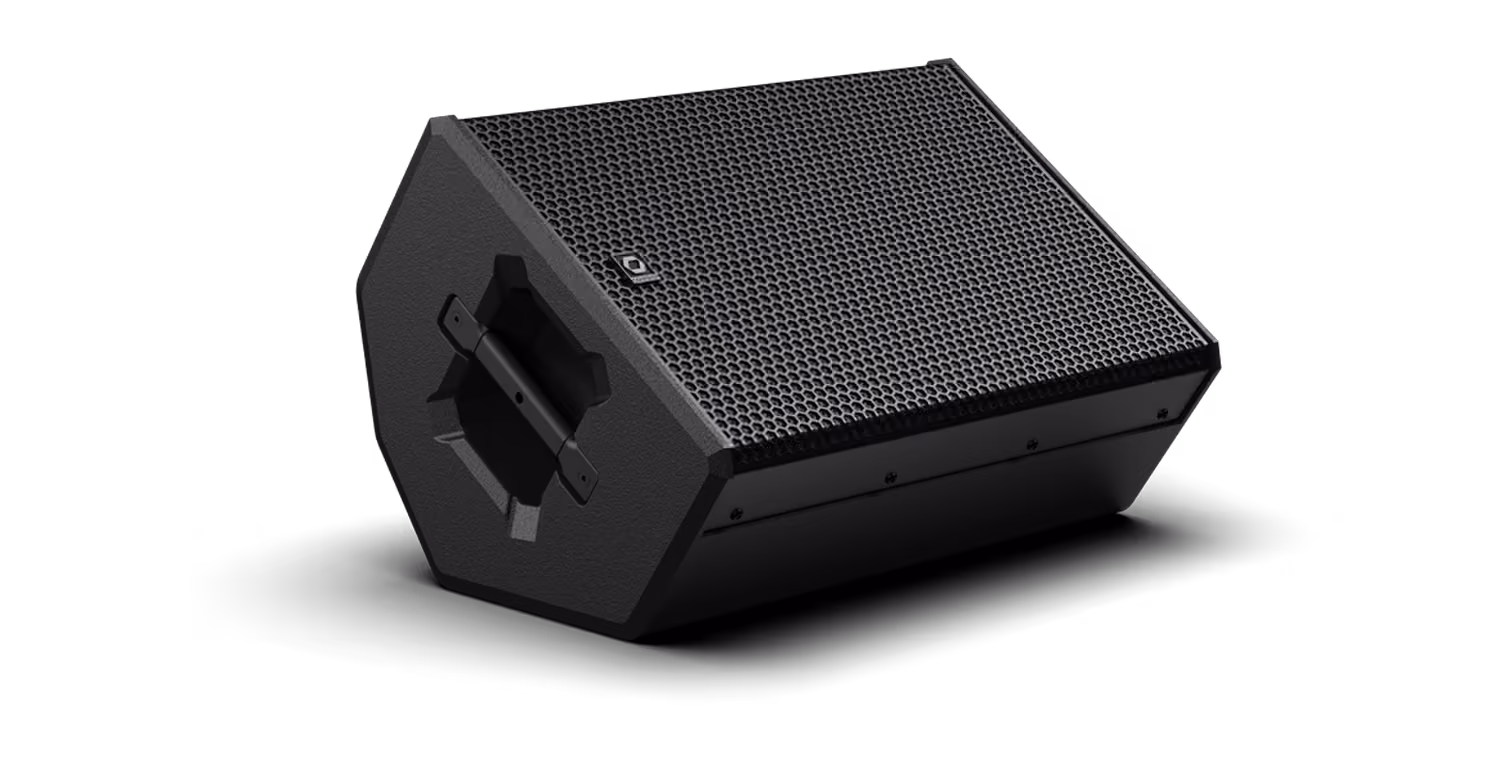

Front Left
Placeholder

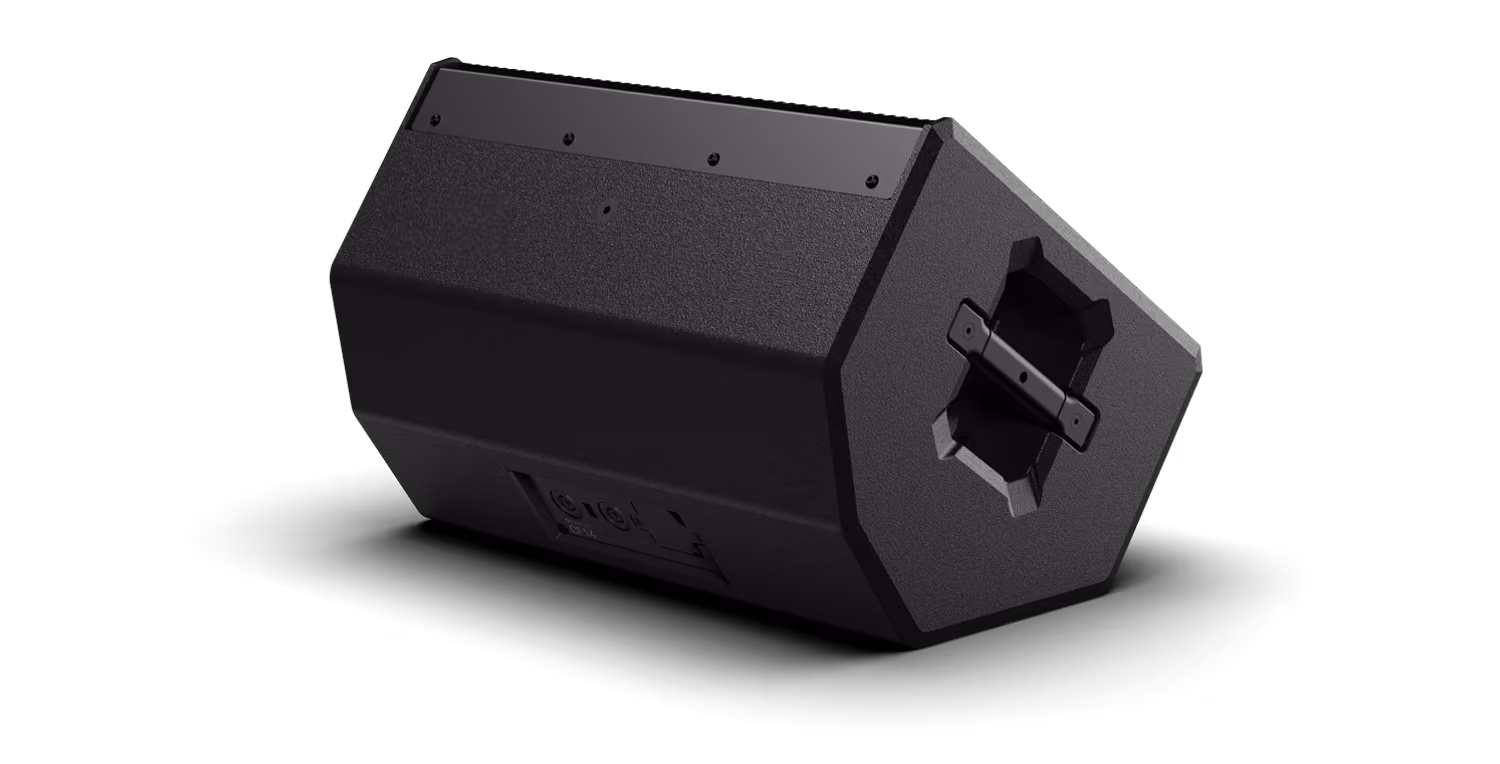

Back Right
Placeholder

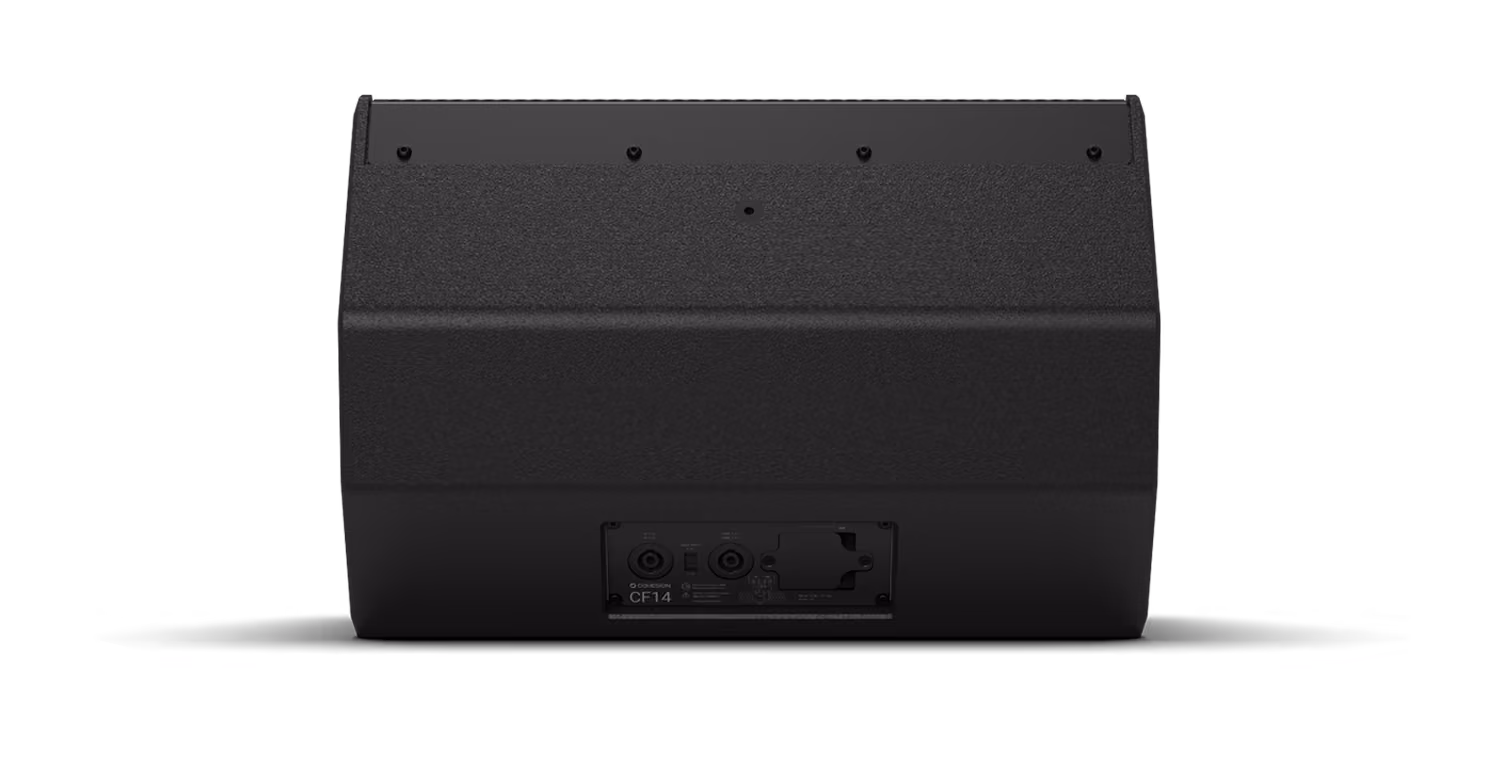

Back
Placeholder

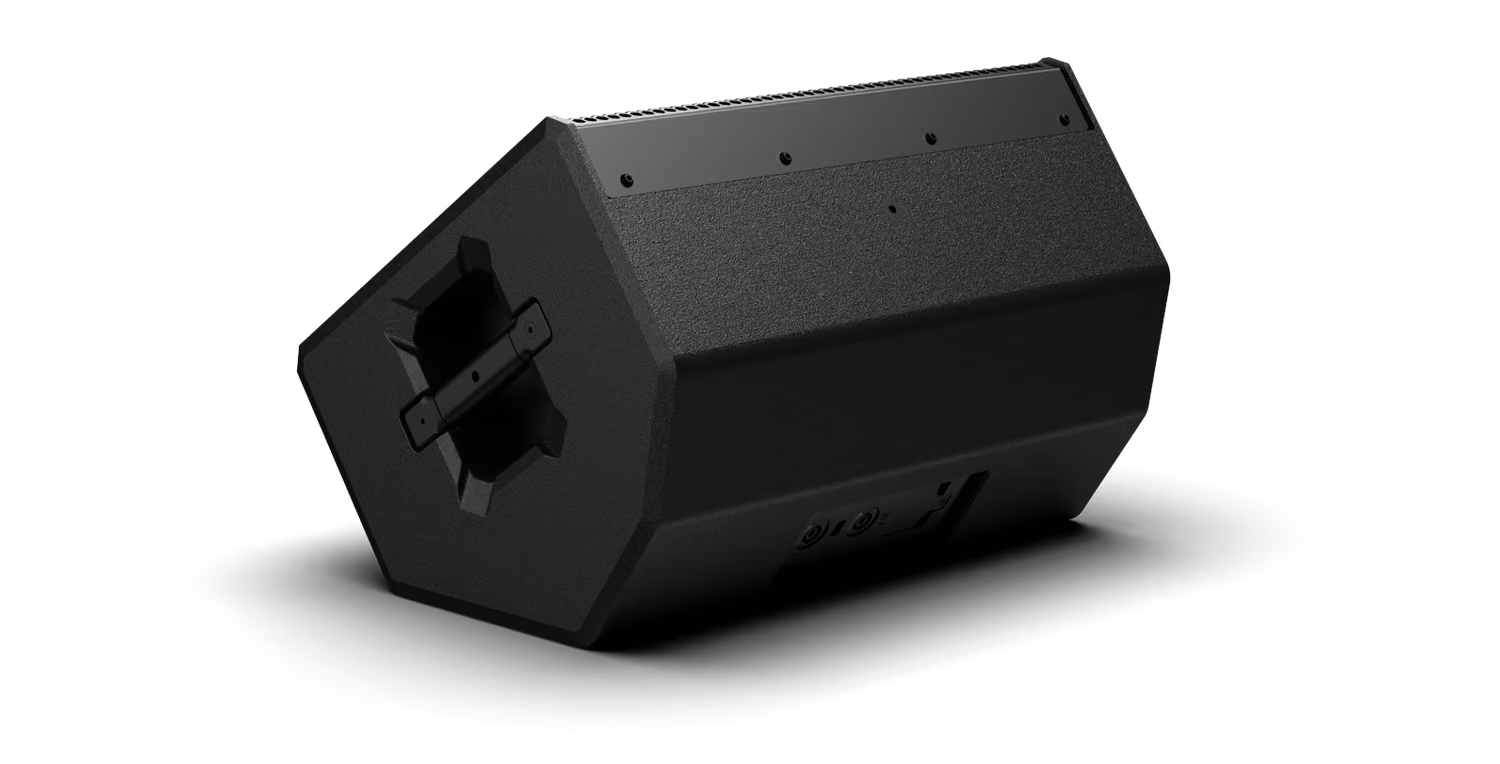

Back Left
Placeholder
CF Family
Placeholder
No items found.
Front Right
Front
Front Left
Back Right
Back
Back Left
CF Family
No items found.

CF14

Point Source

Available early 2024
Weight
47 lbs / 21.4 kg
Size (HxWxD)
15.25 in. x 22.00 in. x 12.12 in.
387.4 mm x 558.8 mm x 307.9 mm
Directivity
80° H x 50° V Rotatable (Standard)
(Optional)
Max spl
140 dB SPL @ 1 M
Bandwidth
52 Hz - 17 kHz (+/-3 dB) / 45 Hz - 20 kHz (-10 dB)
available for
Rental
Purchase
Rental & Purchase

Product Description

The CF14 represents the ideal balance between power and precision within the Cohesion series of fill products. With a maximum SPL of 140 dB, full range bandwidth and 80° x 50° coverage, the CF14 delivers concert-level sound with point source precision.

Its versatile design, featuring a rotatable horn and pole cup, seamlessly integrates into any setup, whether as a high-powered stage monitor or a fill system for arrayable Cohesion products. With the addition of a yoke mount accessory, it can be placed virtually anywhere, offering exceptional flexibility. Whether used as a fill system for the CO Series or distributed on its own, the CF14 adapts to any application with ease.

The CF14 is built with premium weather-resistant components to ensure reliability in harsh environmental conditions. Cohesion products are designed and assembled in the USA.

Product Features

  • Two-Way (Single Amplifier Channel Passive)
  • Frequency Response (+/- 3 dB): 52 Hz - 17 kHz
  • Frequency Response (-10 dB): 45 Hz - 20 kHz
  • Max. Output: 140 dB SPL @ 1 M
  • Drivers: LF: (1) 14 in. (355.6 mm) Cone Driver / HF: (1) 3 in. (76.2 mm) Voice Coil Compression Driver
  • Nominal Impedance: 8 Ohms
  • Directivity: Standard: 80° H x 50° V Rotatable
  • Input Connection: (2) NL4 connectors, (1) 4-pin terminal block
There are no accessories available for this product right now. For updates or inquiries, don’t hesitate to contact us.

Rigging

#
17699
CF14 Horizontal Mounting Bracket

#
18494
CF14 Vertical Mounting Bracket

Transportation

There are currently no accessories available.

Covers

There are currently no accessories available.

Downloads

TEST DATA

Visit the Downloads Portal to view a complete list of available resources for all of our products, including some legacy products.

Downloads Portal

Legacy Products

It appears you're looking for one of our legacy products. To view downloads for all of our legacy products, head to the downloads page.

Downloads Portal
