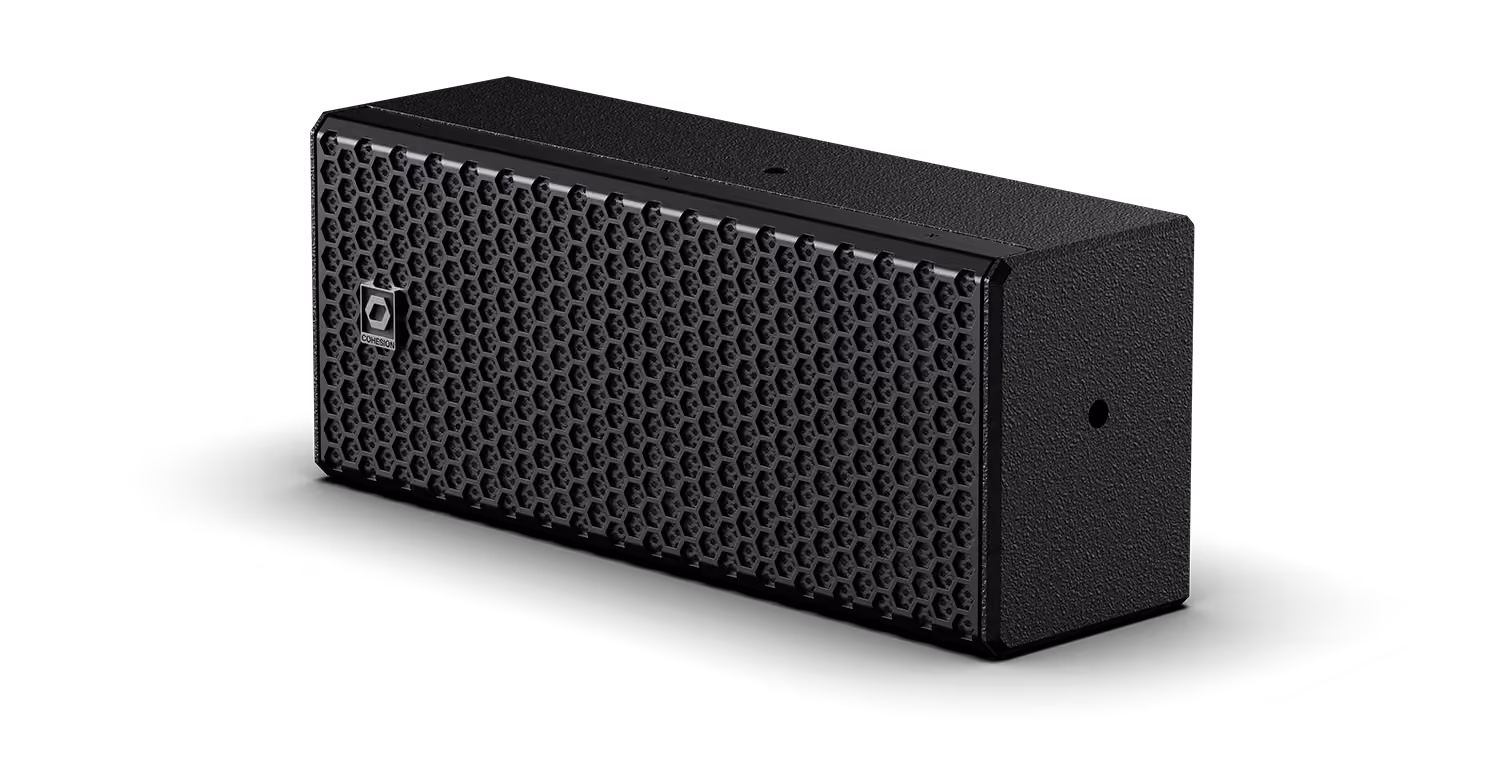

Front Right

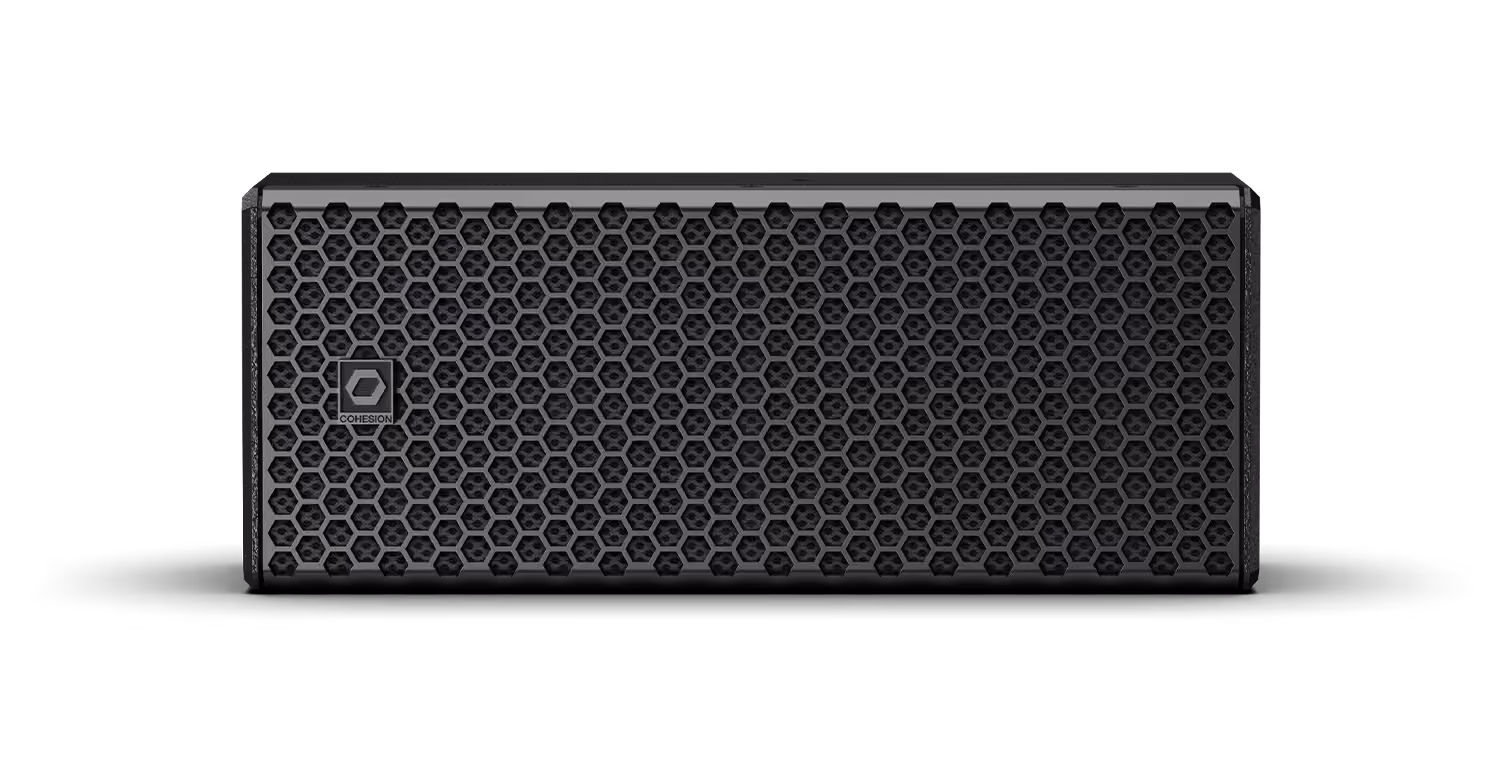

Front

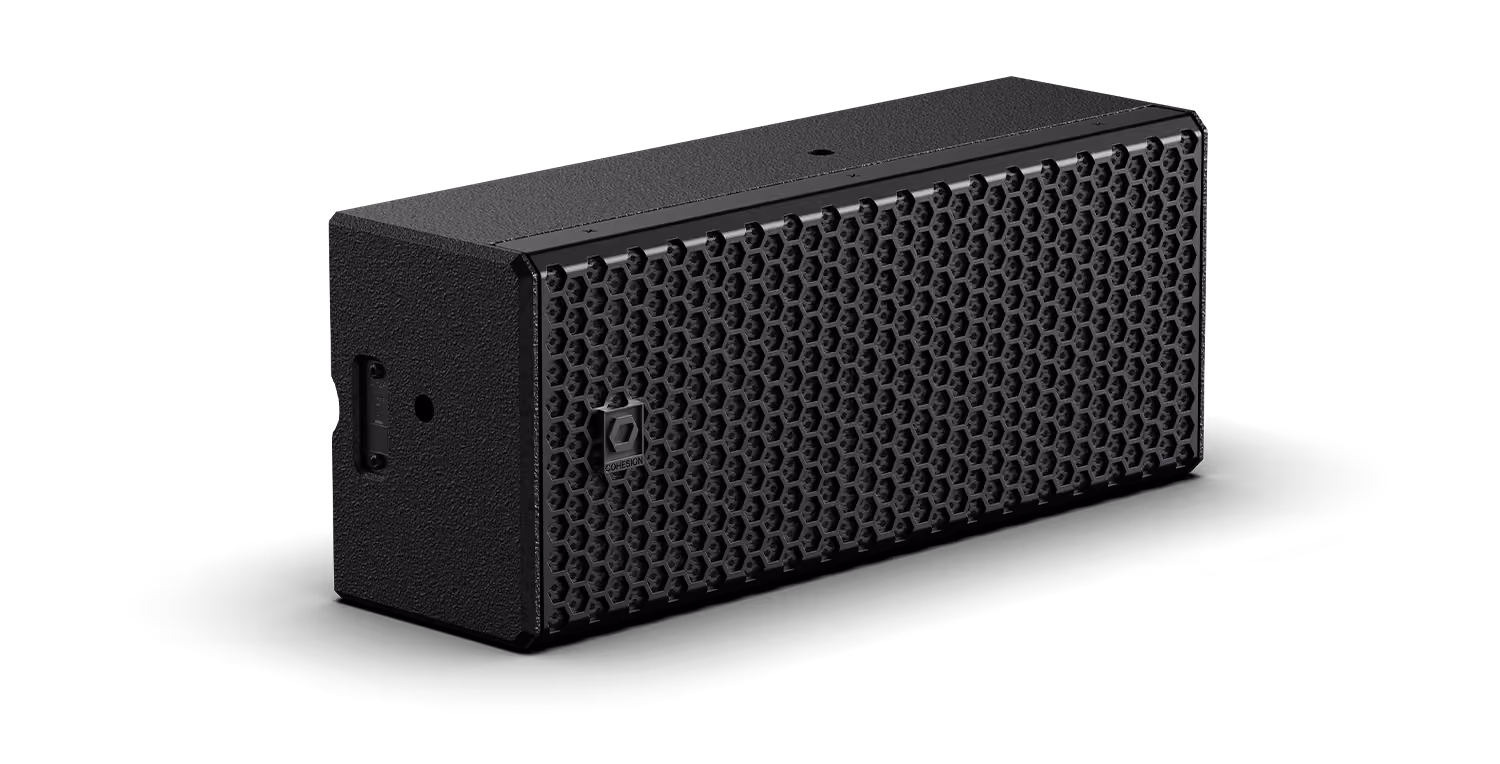

Front Left

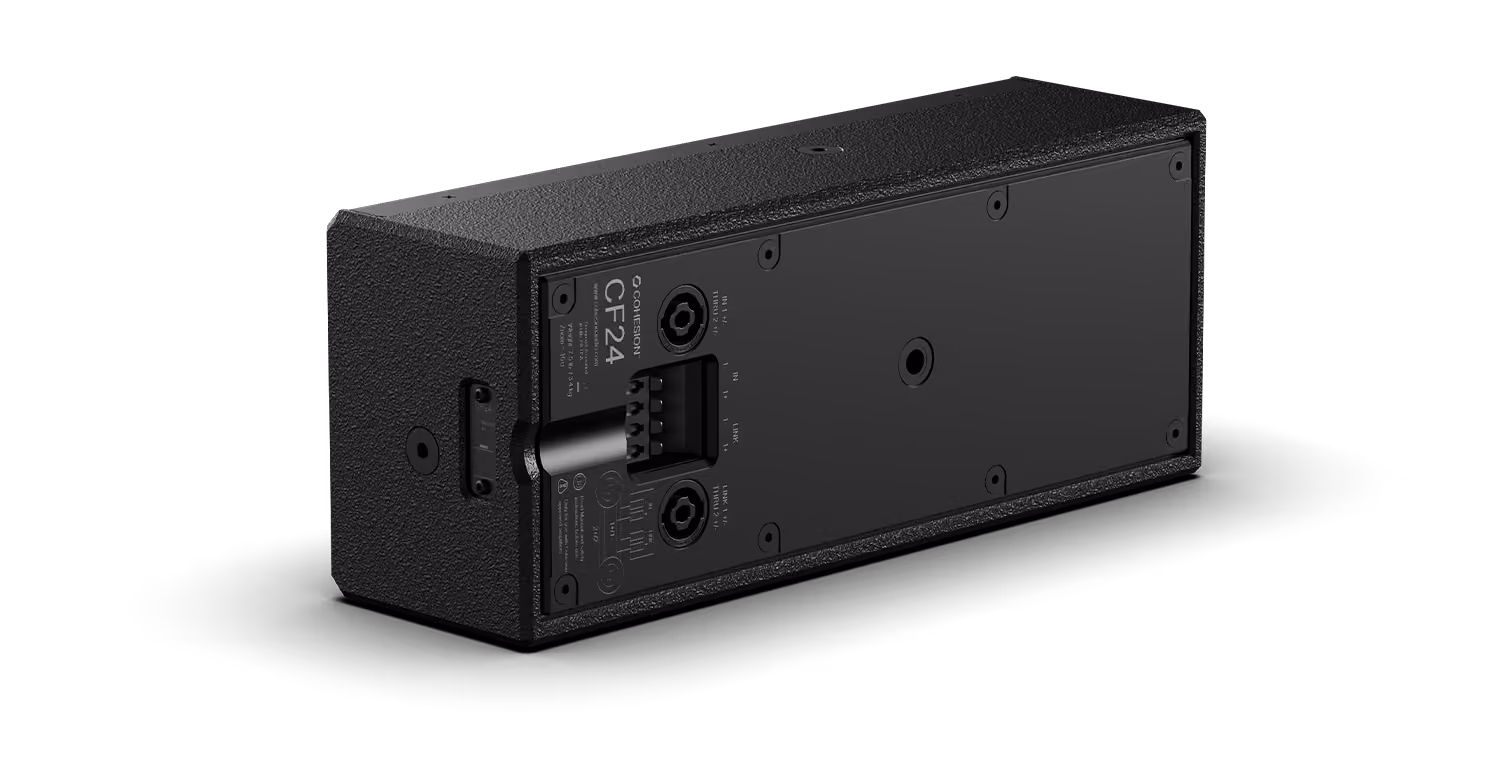

Back Left

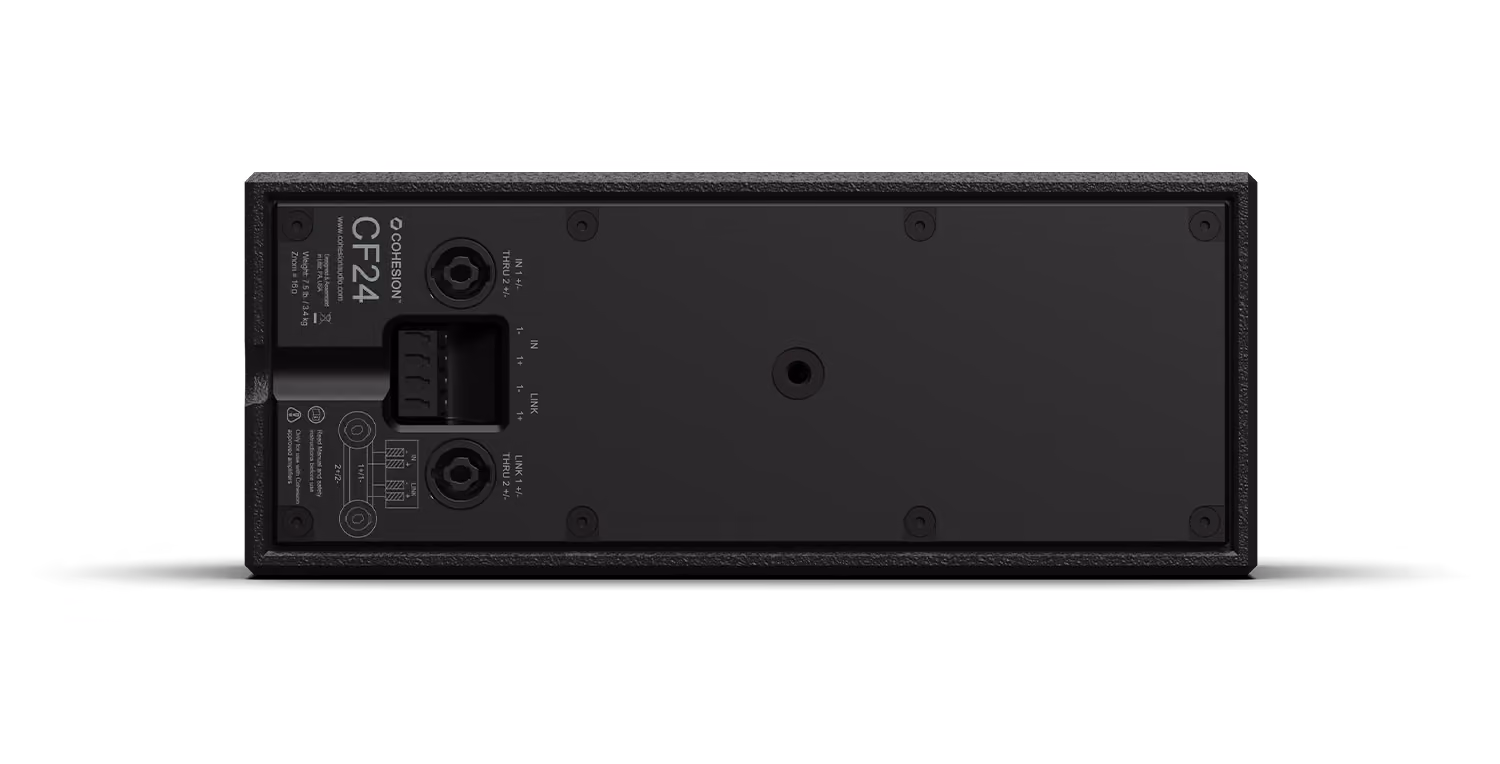

Back

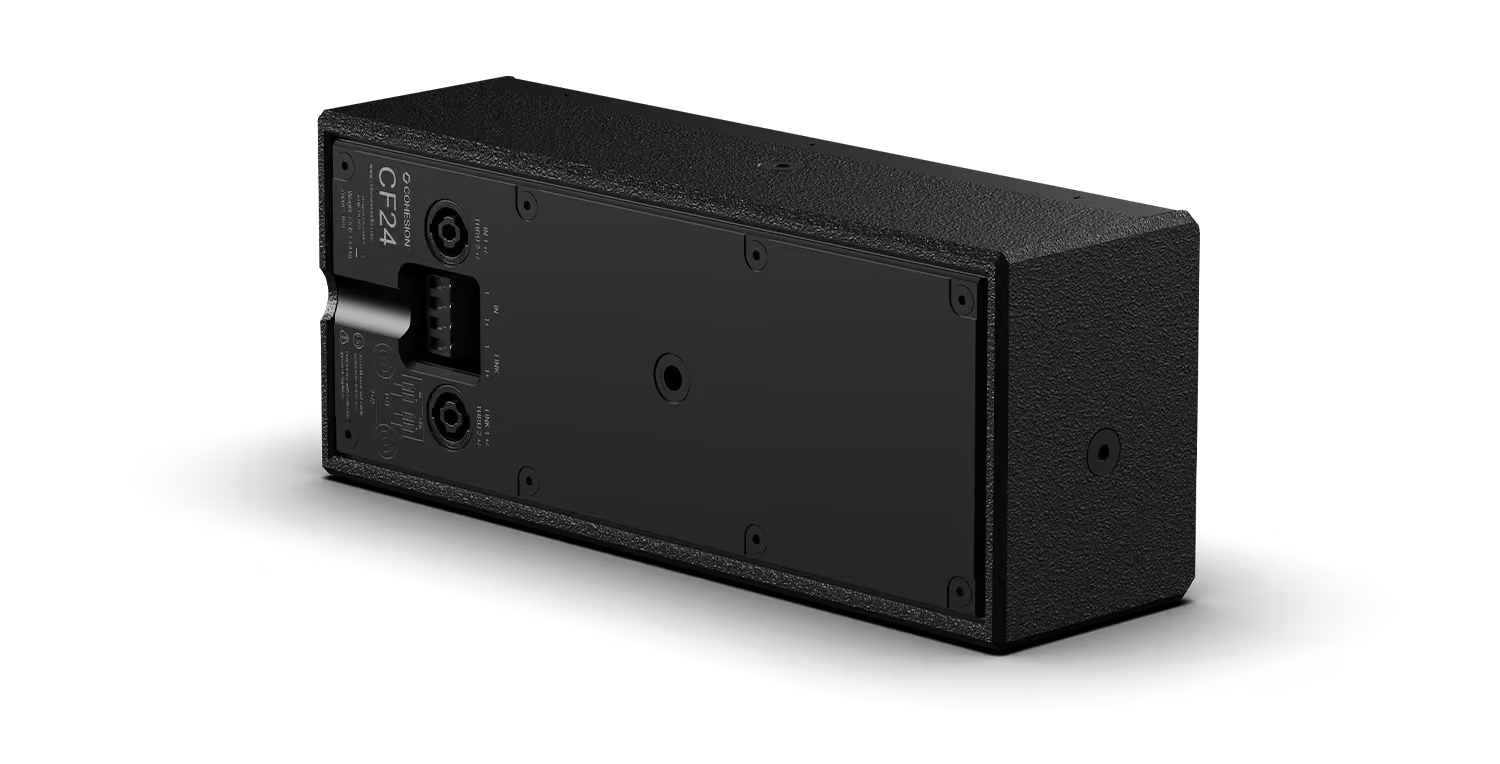

Back Right
CF Family
No items found.

CF24

Point Source

Available early 2024
Weight
7.5 lbs / 3.4 kg
Size (HxWxD)
13.51 in. x 5.37 in. x 4.00 in.
343.3 mm x 136.5 mm x 101.6 mm
Directivity
110° H x 110° V (Standard)
(Optional)
Max spl
122 dB SPL @ 1 M
Bandwidth
100 Hz–20 kHz (+/-3 dB) / 82 Hz–20 kHz (-10 dB)
available for
Rental
Purchase
Rental & Purchase

Product Description

The CF24 represents the latest innovation in the Cohesion line of fill products, boasting a maximum SPL of 122 dB and exceptional performance for its small size.

The compact form factor seamlessly integrates into stud walls and recessed areas, allowing for discreet placement within existing or built architecture while maintaining sonic quality. Used as a fill system for the CO Series, as a near field monitor, or distributed on its own, the CF24 offers exceptional application flexibility with vertical, horizontal, or mic stand mounting accessories.

The CF24 is built with premium weather-resistant components to ensure reliability in harsh environmental conditions. Cohesion products are designed and assembled in the USA.

Product Features

  • Two-Way (Single Amplifier Channel Passive)
  • Frequency Response (+/- 3 dB): 100 Hz–20 kHz
  • Frequency Response (-10 dB): 82 Hz–20 kHz (-10 dB)
  • Max. Output: 122 dB SPL @ 1 M
  • Drivers: LF: (2) 4 in. (101.6 mm) Cone Driver / HF: (1) 1.4 in. (36 mm) Voice Coil Compression Driver
  • Nominal Impedance: 16 Ohms
  • Directivity: Standard: 110° H x 110° V
  • Input Connection: (2) NL4 connectors, (1) 4-pin terminal block
There are no accessories available for this product right now. For updates or inquiries, don’t hesitate to contact us.

Rigging

#
18501
CF24 Vertical Mounting Bracket

#
18502
CF24 Horizontal Mounting Bracket

#
18503
CF24 Mounting Bracket Mic Stand Adapter

Transportation

There are currently no accessories available.

Covers

There are currently no accessories available.
